Sale!
Gamma Nail Instruments
Gamma Nail Instruments shoot
Gamma Nail Instruments shoot
Categories: ,

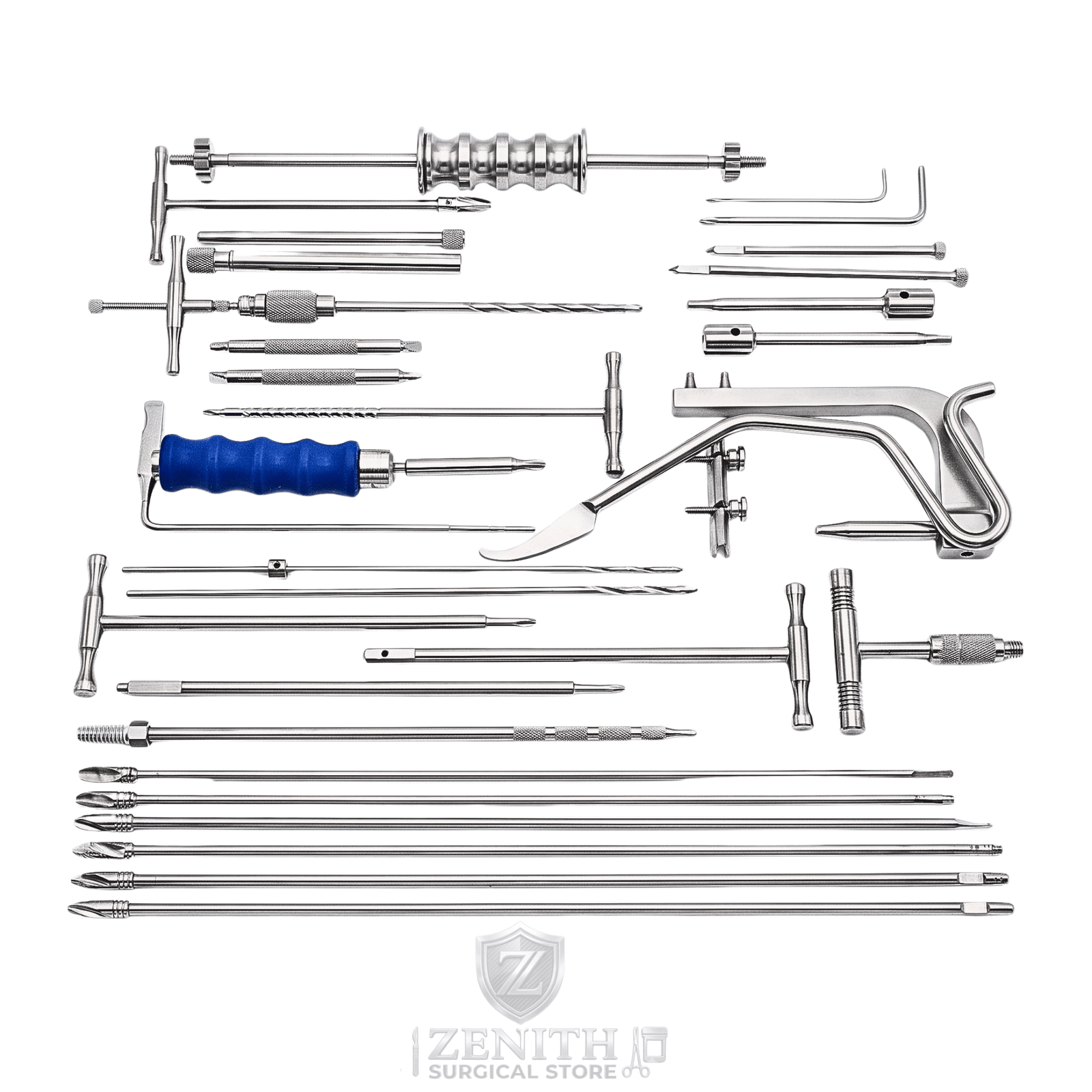

Gamma Nail Instruments-34 Pcs

Original price was: $1,430.00.Current price is: $1,385.00.

40+ bought in past month
Quantity
Wishlist

INVENTORY

IN Stock
  • Material‏ : ‎ High-Grade Stainless Steel / Titanium
  • Finish ‏ : ‎ ‎ Satin / Anti-Glare / Corrosion-Resistant
  • Sterilization : ‎ ‎Autoclave Safe & Reusable
  • Grip : ‎ ‎‎Non-Slip Ergonomic Handle
  • Grade ‏ : ‎ ‎‎Medical / Surgical Grade
Custom Order / Request a Quate
Brand Name
About this item

A complete gamma nail instruments set — covering lag screw insertion, reamer shaft assembly, torque limiting screwdriver, fracture fixator components, and dynamic hip mechanics — gives an orthopaedic trauma surgery team everything needed for controlled, reproducible proximal femoral nailing. Built from 316L stainless steel, organized in a properly autoclavable tray, and backed by proven fixation system engineering, this kit remains one of the most relied-upon instrumentation configurations in trochanteric fracture management today.

Sr. No. Product Name Quantity
1 Lag Screw Step Tap 1 pcs
2 Lag Screw Step Drill 1 pcs
3 Distal Drill 5.5 x 220mm 1 pcs
4 Distal Screw Depth Gauge 1 pcs
5 Kirschner Wire Guide Sleeve 1 pcs
6 Guide Sleeve for 5.5mm 1 pcs
7 Guide Sleeve for Lag Screw 1 pcs
8 Screw Driver for Nail Holding Bolt 1 pcs
9 Set Screw Driver 1 pcs
10 Nail Extraction Rod 1 pcs
11 Distal Guide Sleeve 1 pcs
12 Distal Abturator 1 pcs
13 Final Impactor 1 pcs
14 Lag Screw Length Gauge 1 pcs
15 Socket Wrench 1 pcs
16 Mini Depth Gauge 1 pcs
17 Nail Holding Bolt 1 pcs
18 Awl for Distal Screw 1 pcs
19 Awl for Lag Screw 1 pcs
20 Lag Screw Driver 1 pcs
21 Carbon Fiber Targeting Device 1 pcs
22 Distal Screw Driver-Recovered 1 pcs
23 Chuck & Key 1 pcs
24 Targeting Sleeve 130° 1 pcs
25 Protection Sleeve for 13 mm Reamer 1 pcs
26 RAM 1 pcs
27 Extractor Rod 1 pcs
28 Targeting Sleeve 130 1 pair
29 Protection Sleeve for 13mm Reamer 1 pair
30 Hemmering Device 1 pcs
31 Cannulated Reamer 17mm 1 pair
Looking for specific info?
Facebook Instagram Whatsapp

Relating Products

Related products

Gamma Nail Instruments: A Complete Guide to Proximal Femoral Nailing Instrumentation

A gamma nail instruments set brings together the specialized tools needed for proximal femoral nailing — one of the most widely performed procedures in orthopaedic trauma surgery for treating fractures of the trochanteric region and proximal femoral shaft. This guide covers the core components of a complete gamma nail system, how each piece of instrumentation is used, and the material standards behind a dependable kit.

What Is Gamma Nailing?

Gamma nailing is a form of proximal femoral intramedullary fixation in which a short or long nail is placed within the femoral medullary canal to stabilize a fracture of the hip or upper femoral shaft. The defining feature of the gamma nail system is the lag screw that passes through the nail into the femoral head, providing rotational stability and controlled compression across the fracture site during healing. The design bridges the role of a dynamic hip screw plate system and a full-length intramedullary nail, offering a less invasive approach with reliable fixation across a broad range of proximal femoral fracture patterns.

Core Instruments in the Gamma Nail Set

Nail and Lag Screw Insertion Handle

The insertion handle connects to the proximal end of the gamma nail, allowing controlled introduction into the femoral medullary canal during surgery. This handle also acts as the mounting point for the targeting guide that aligns subsequent lag screw and fixator screw placements relative to the positioned nail.

Lag Screw

The lag screw is the central stabilizing component of the gamma nail system, passing through the targeting guide, through the nail, and into the femoral head to provide rotational stability and allow controlled collapse across the fracture site. Accurate lag screw positioning within the femoral head is critical to the outcome of the procedure.

Torque Limiting Screwdriver

The torque limiting screwdriver is used for final tightening of the lag screw set screw and the nail‘s distal interlocking screws, ensuring that screws are tightened to the correct torque specification without overtightening, which could risk stripping the threads or compromising fixation integrity. The torque limiting mechanism is a small but genuinely important engineering feature that protects the construct at the most critical final step of the procedure.

Reamer and Shaft Assembly

The reamer shaft assembly widens the femoral medullary canal to the appropriate diameter before nail introduction, using progressively larger reamer heads to achieve a controlled, snug fit. The reamer is guided along a wire positioned within the canal, maintaining accurate trajectory throughout the widening process. The shaft assembly connects the reamer head to the drill, transmitting rotational force while following the natural curvature of the femoral canal.

Fracture Fixator and Set Screws

The fracture fixator component — the distal interlocking screws and associated guides — completes the rotational and length fixation of the construct, locking the nail against shortening or rotation at the fracture site. These are placed using the targeting device attached to the insertion handle, with dedicated drill sleeves and depth gauges ensuring accurate placement at the nail‘s distal holes.

Dynamic Hip Connection

One of the defining features of the gamma nail system is its dynamic design, which allows the lag screw to slide within the nail under load, permitting controlled fracture compression as the patient begins weight-bearing during recovery. This dynamic hip sliding mechanism is distinct from fixed-angle designs and is part of what gives gamma nailing its biomechanical advantages for specific fracture patterns, particularly in elderly patients with osteoporotic bone.

The Complete Gamma Nail Instruments Kit

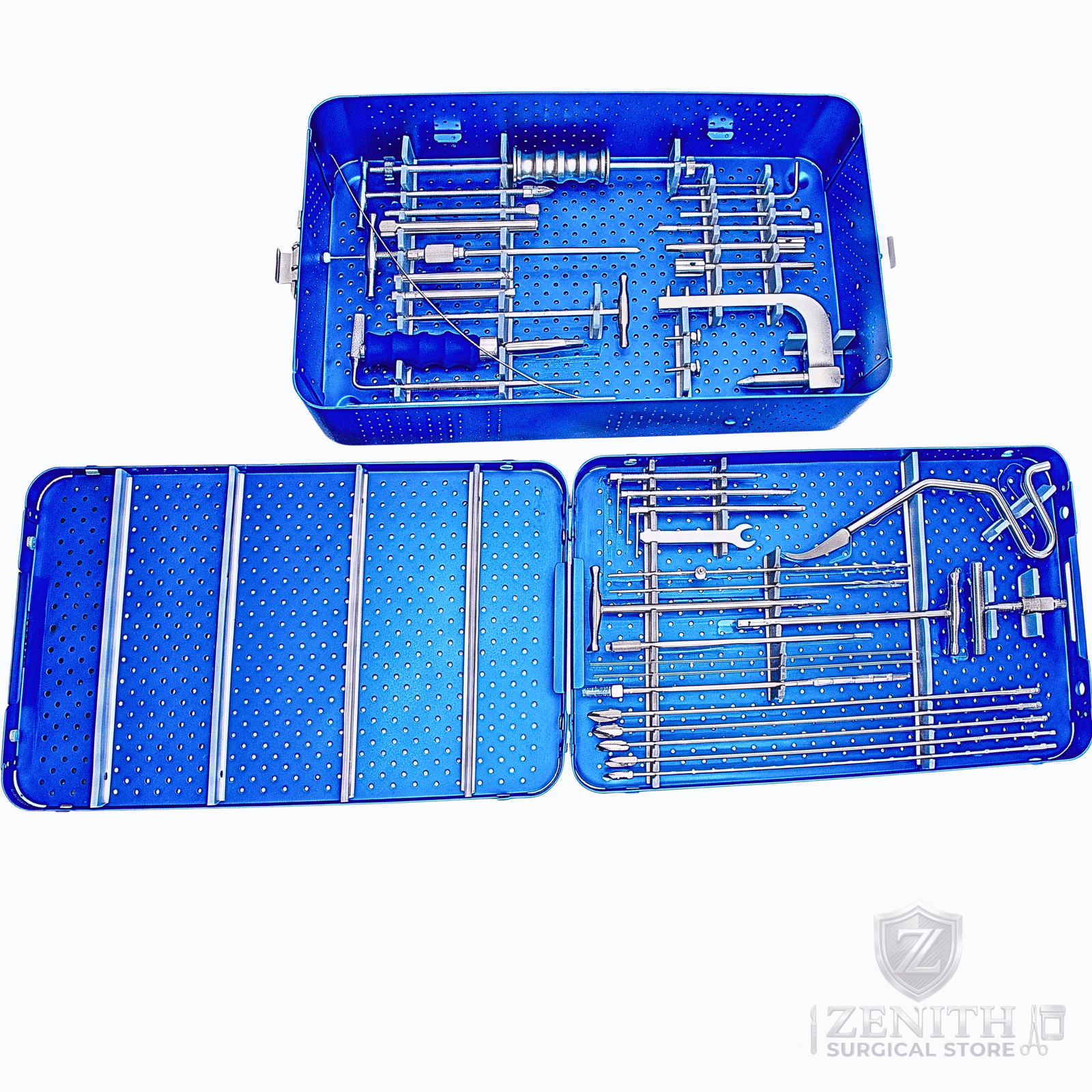

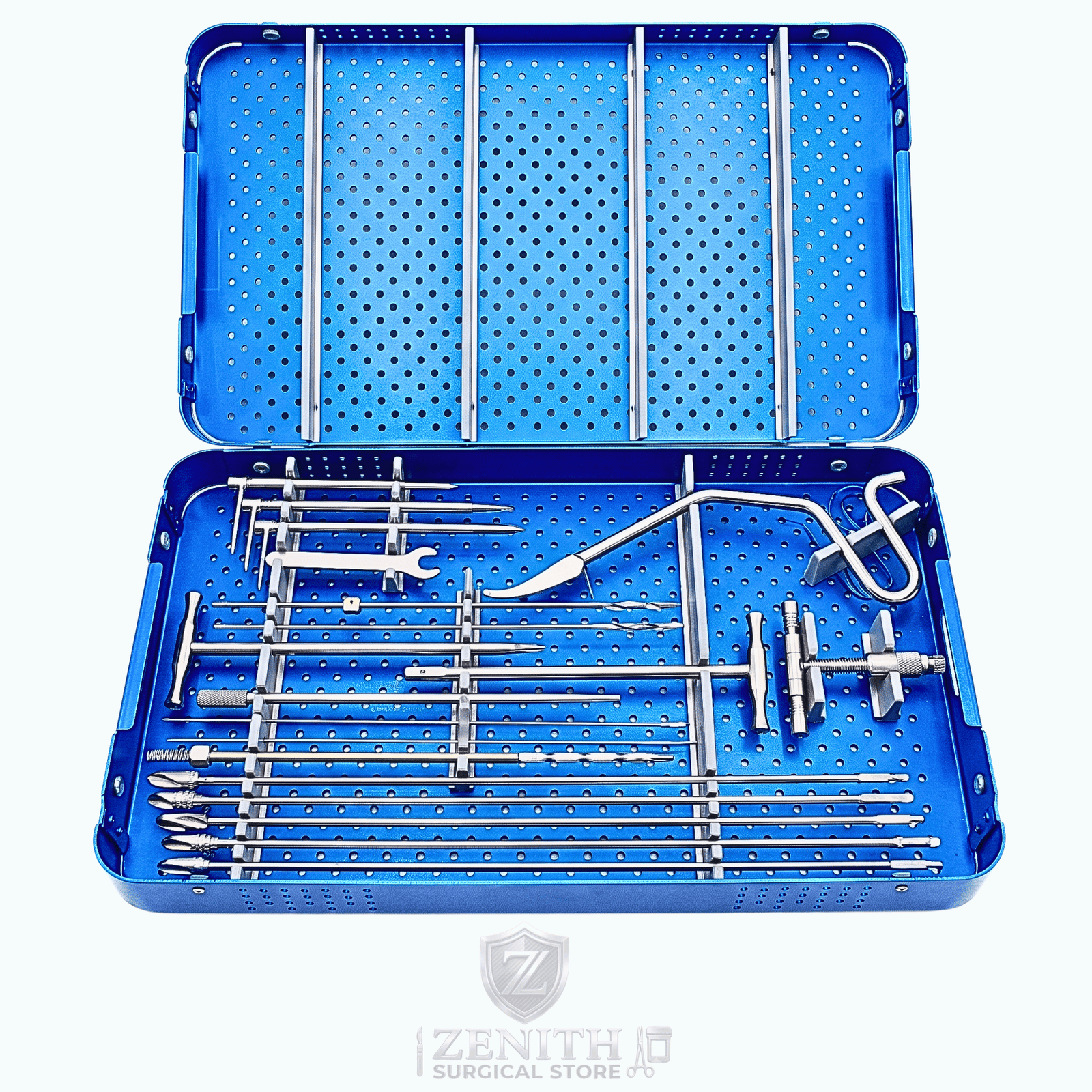

A complete gamma nail instruments kit includes the nail itself, lag screw in appropriate sizes, insertion handle, torque limiting screwdriver, reamer shaft assembly with multiple reamer heads, targeting jig, drill guides and sleeves, depth gauge, distal fixator screws, and a fracture extraction device for revision cases. All of these are organized in a labeled, perforated autoclavable cassette or tray that keeps every component clearly positioned and protects fine instrumentation during repeated sterilization cycles.

Material Standards

Every reusable instrument in a quality gamma nail set is built from surgical-grade stainless steel, most commonly 316L, chosen for its reliable corrosion resistance through repeated autoclavable sterilization. Many precision components — particularly the torque limiting screwdriver and targeting jig — are manufactured to German stainless steel standards, reflecting the dimensional precision that accurate proximal femoral nailing demands. A well-organized cassette or tray keeps the complete system accounted for and ready between cases.
